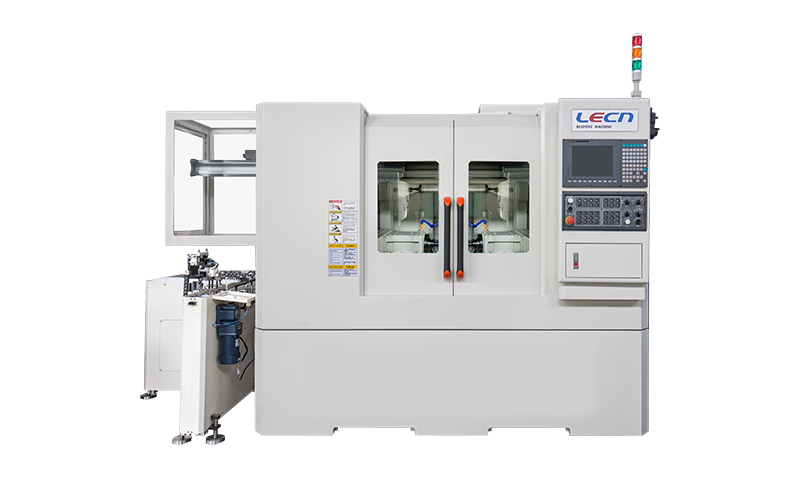

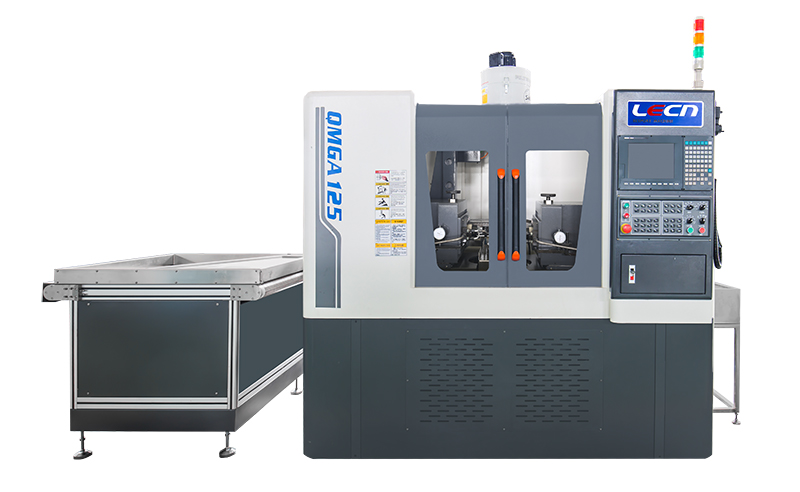

Cage grinding machine with one-time clamping and processing of multiple window cages, 40-135 mm clamping diameter, which is suitable for the precision grinding of window cage.High efficiency, μ dimensional accuracy, modular single machine automation, it can carry with automatical line.
Advantage

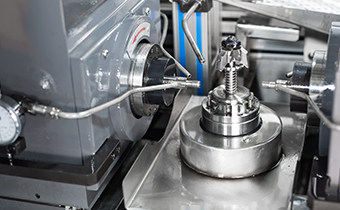

Grinding axis perpendicular adjust structure
Can adjust window’s upper and lower milling surfac’s milling quantity and height foleronce, μ dimensional accuracy.

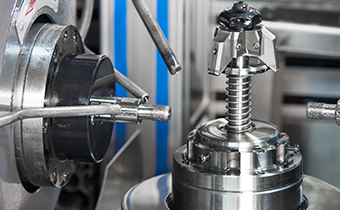

Servo drive workpiece axis
Can rotate back and forth and precise circumference of the high-frequency decile.

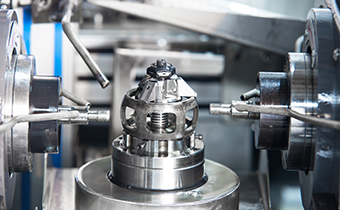

Special pneumatic clamps
Clamping reliable, accuracy stability.

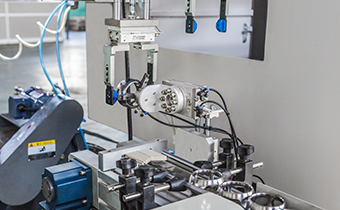

Automatic adjust
Technical Parameters
| ITEM | QMGA125 | QMGA135 |
| Clamping Diameter Scope, mm | Ø40-Ø70 | Ø70-Ø135 |
| Max Workpiece Height, mm | 50 | 70 |
| Window Height Scope, mm | 12-40 | 40-50 |
| Tool Diameter Scope, mm | Ø6-Ø12 | Ø6-Ø16 |

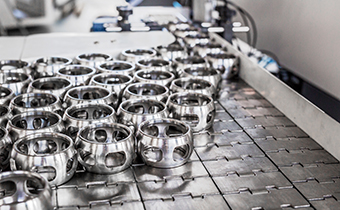

Application Artifact
