The Centering Machine is ideal for centering, slicing and chamfering both ends of bars, such as camshafts, crankshafts, spiders, etc. Ensure perfect center alignment, accurate lengths and true ends, which are available in both models.
Combined centering and facing operations save machining time, handling time and floor space. The machine has two hydraulically operated self-centering workholding fixtures with push button controls. The cutting cycle is fast approach, slow feed and fast return via buttons.
A face centering machine is a lathe that can machine both ends of a bar at the same time. While it may be called a facing and centering machine, it can also chamfer, drill, countersink, and turn.
The Facing And Centering Machine is used for facing and centering shafts of different ranges. This is fast and efficient in one setup.
Vertical Facing and Centering Machine

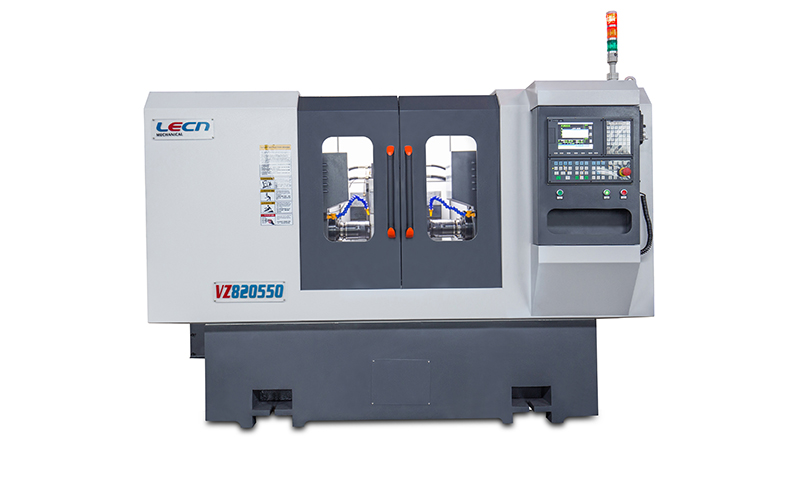

Vertical Facing and Centering Machine VZ820550
Clamping Diameter Scope: Ø15-Ø50 mm
Workpiece Length Scope: 100-500 mm

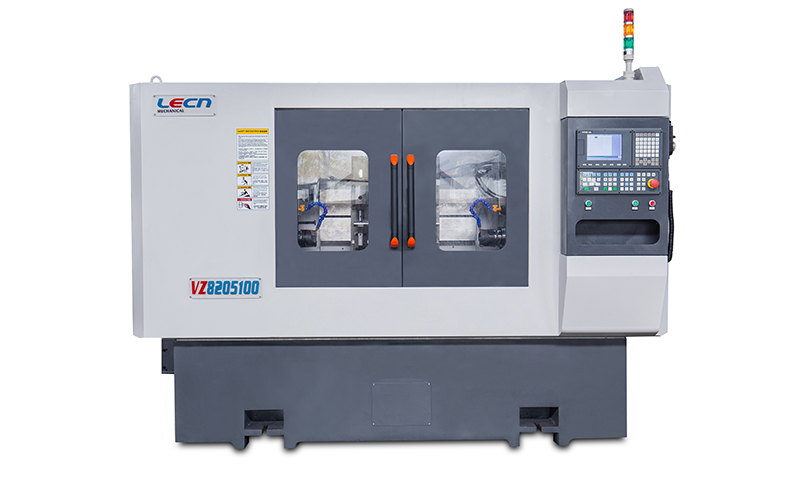

Vertical Facing and Centering Machine VZ8205100
Clamping Diameter Scope: Ø15-Ø50 mm
Workpiece Length Scope: 100-1000 mm

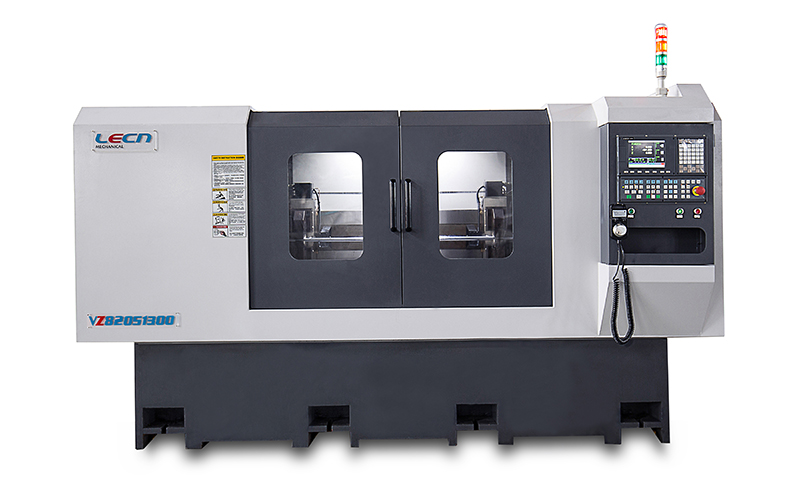

Vertical Facing and Centering Machine VZ8205130
Clamping Diameter Scope: Ø15-Ø50 mm
Workpiece Length Scope: 100-1300 mm
Slanting Facing and Centering Machine

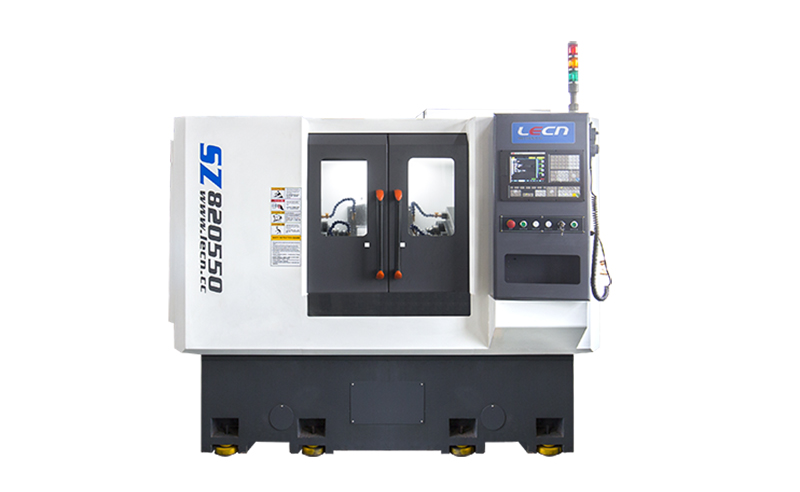

Slanting Facing and Centering Machine SZ820530/SZ820550
Clamping Diameter Scope: Ø15-Ø50 mm
Workpiece Length Scope: 100-500 mm

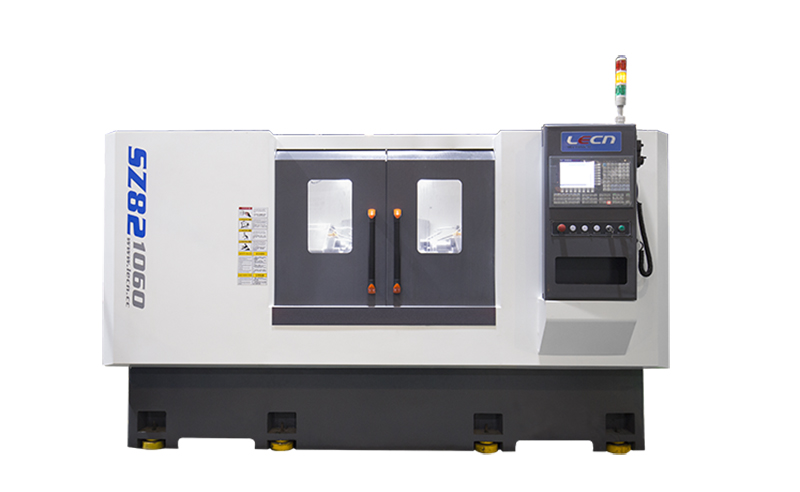

Slanting Facing and Centering Machine SZ821060/SZ821080
Clamping Diameter Scope: Ø15-Ø100 mm
Workpiece Length Scope: 200-800 mm
Slanting Facing and Centering Machine SZ8210120/SZ8210150
Clamping Diameter Scope: Ø15-Ø100 mm
Workpiece Length Scope: 300-1500 mm
Horizontal Facing and Centering Machine
Horizontal Facing and Centering Machine Z820530/Z820550
Clamping Diameter Scope: Ø15-Ø50 mm
Workpiece Length Scope: 100-500 mm
Horizontal Facing and Centering Machine Z821060/Z821080
Clamping Diameter Scope: Ø15-Ø100 mm
Workpiece Length Scope: 200-800 mm

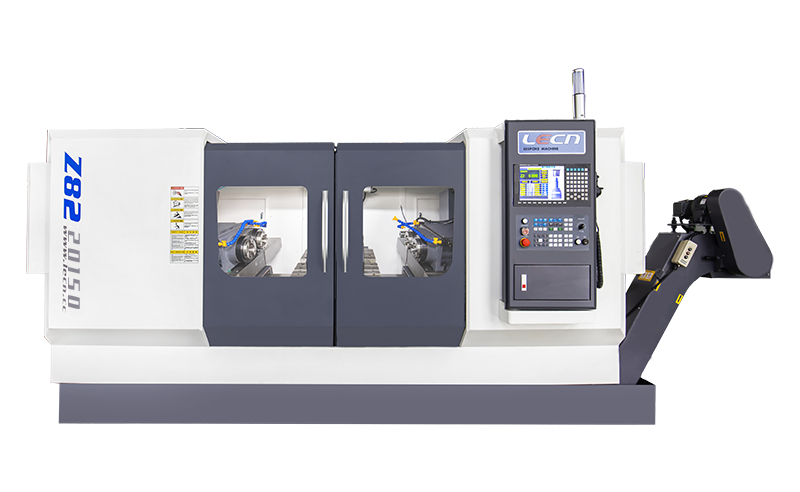

Horizontal Facing and Centering Machine Z8220150/Z8220200/Z8220300
Clamping Diameter Scope: Ø100-Ø200 mm
Workpiece Length Scope: 300-3000 mm
