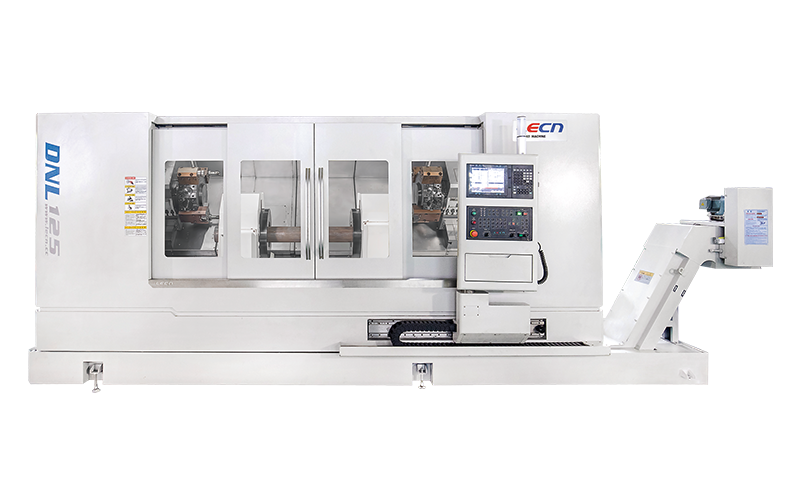

Both ends of the one clamping are processed at the same time or independently, the slanting standard turret double head CNC lathe with 100-1700 mm turning length is suitable for turning, drilling, tapping and boring of precision shaft parts. Compared with traditional CNC lathe, one is equivalent to the machining efficiency of two machines, and the coaxiality can reach μ level. High precision, high efficiency, it can carry with truss or joint robot and automatical line.
Advantage

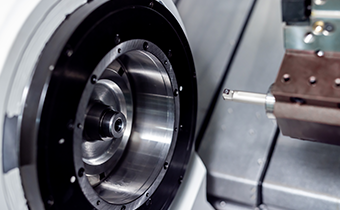

Espond to different parts
Only replace the collet and fixtures.

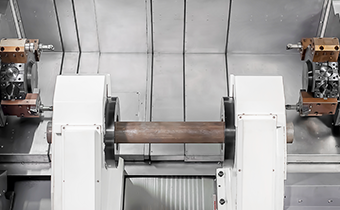

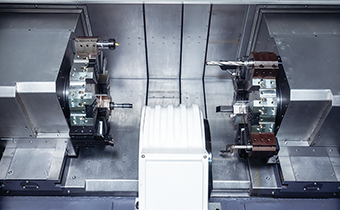

Simultaneous processing
2 times efficiency, μ degree of coaxiality.

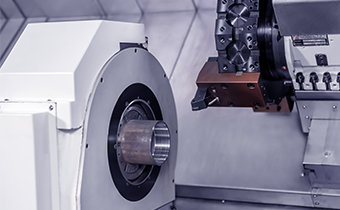

single or double spindle of special construction
Distance between two spindles can be adjusted according to the length of workpiece.
Dual-channel controller
Easily respond to synchronization processing.
Technical Parameters
| ITEM | DNL121 | DNL122 | DNL125 |
| Max Body Rotate Diameter, mm | Ø300 | Ø300 | Ø300 |
| Clamping Diameter Scope, mm | Ø70-Ø120 | Ø70-Ø120 | Ø70-Ø120 |
| Turning Length Scope, mm | 100-300 | 300-500 | 1000-1700 |
| Spindle Clamp Diameter, mm | Ø120 | Ø120 | Ø120 |
| X/Z Travel, mm | 180/200 | 180/200 | 220/250 |
| X/Z Fast Speed, m/min | 18/24 | 18/24 | 18/24 |
| Fool Type | Turret | Turret | Turret |
| Numbel of central spindles | 1 | 1 | 1 or 2 |
Application Artifact
