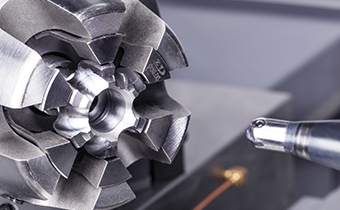

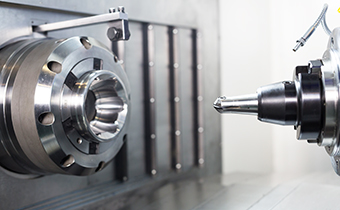

Single station inner race milling machine with one-time clamping and processing of multiple BJ/UFJ/SX/DOJ grooves, 20-65 mm processing of groove diameter, which is suitable for the milling of inner race. High efficiency, hard milling instead of grinding，it can carry with truss or joint robot and automatical line.
Advantage
Hydraulic end tooth indexing
High precision.
Special hydraulic elastic clamp
Clamping reliable, accuracy stability.
Milling instead of grinding
Simplify process,strengthen work piece surface quality.
Automation
Factory high stability automation.
Technical Parameters
| ITEM | QYXB125 |
| Max Clamping Diameter, mm | Ø35 |
| Max Workpiece Height, mm | 60 |
| Groove Diameter Scope, mm | Ø20-Ø65 |
| DiameterOf Steel Ball Scope, mm | Ø12.7-Ø22 |

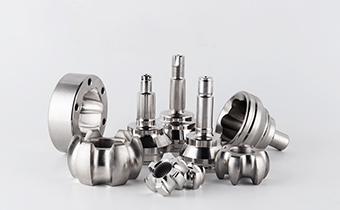

Application Artifact
