Centerless Grinding Machine: Benefits and How It Works

Apr. 12, 2024

Centerless grinding is a favored machining technique among manufacturers for achieving precise exterior diameters in cylindrical components. Its fundamental approach involves material removal through abrasive grinding, eliminating the need for a center and ensuring high precision and productivity. This technique encompasses various forms such as through-feed and in-feed grinding, each tailored to specific purposes.


The notable advantages of centerless grinding include superior roundness and surface quality, making it ideal for mass production. However, a significant drawback is the lack of a system to ensure precise positioning between grinding surfaces.


What is Centerless Grinding?


In a centerless grinding process, the workpiece is positioned between two rotating grinding wheels, typically in a clockwise motion. The primary grinding wheel remains stationary while the secondary wheel, known as the regulating wheel, adjusts the pressure on the workpiece and applies downward force. As the workpiece rotates, it is stabilized by the regulating wheel during grinding. This dynamic setup allows the grinding wheel to remove any excess material left after the initial grinding pass.


How Does Centerless Grinding Work?


Centerless grinding operates on the principle of material removal from a workpiece without the need for a center point. It employs a centerless grinding machine with two grinding wheels: one fixed and the other adjustable. The workpiece is positioned between these wheels, and the adjustable wheel, known as the regulating wheel, applies pressure to control the workpiece's rotational speed. As the workpiece rotates, the fixed grinding wheel removes material, achieving precise outer diameters or desired shapes.

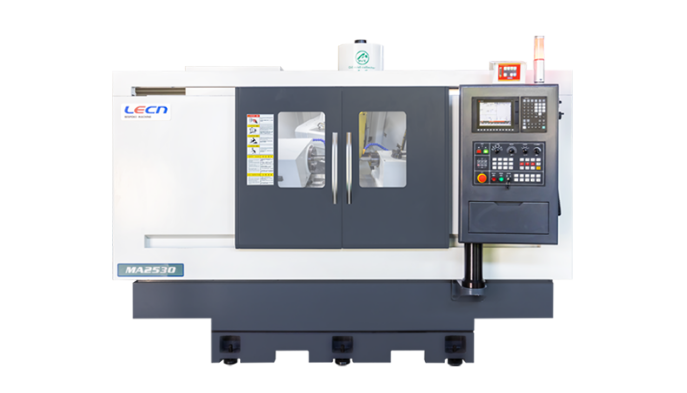

centerless grinding machines

What Are the Advantages of Centerless Grinding?


Here is the list of advantages of a centerless grinding machine:


1. Offers a continuous "through-grinding" process with short loading times, eliminating the need for center support.

2. The absence of centering reduces stock requirements. This leads to longer wheel life and higher yields.

3. Rigidly supports the workpiece, preventing deflection. It allows for heavier passes and consistent production. It is essential for maintaining daily volumes without disruptions.

4. Adapts easily to different part sizes, making it suitable for high-volume production.

Handles various sizes and shapes without imposing axial thrust on the workpiece, making it suitable for brittle and distorted materials.



What Are the Common Applications of Centerless Grinding?


Centerless grinding finds widespread applications across various industries, including the production of bearings, shafts, and camshafts. Its versatility benefits industries such as hydraulic and fluid control, medical, automotive, aerospace, and consumer goods. This process is crucial for manufacturing parts like pistons, valves, and rods, as it excels in achieving accurate cylindrical forms and surface precision.


Key Components of a Centerless Grinding Machine


A centerless grinding machine comprises several crucial components:


1. Grinding Wheel: This abrasive wheel removes material from the workpiece.

2. Regulating Wheel: It controls the rotation and feed rate of the workpiece.

3. Work Rest Blade: This component supports and guides the workpiece during grinding.

4. Workpiece: The part undergoing grinding.

5. Grinding Wheel Dresser: It preserves the shape of the grinding wheel.

6. Grinding Wheel Head: This part of the machine holds and rotates the grinding wheel, ensuring grinding precision.

7. Machine Bed: The rigid base or frame of the centerless grinding machine that provides stability and support for all other components.


How Does the Efficiency of Centerless Grinding Compare to Other Machines?


When it comes to cylindrical workpieces, centerless grinders often outperform conventional lathe machining. Centerless grinding boasts shorter setup times since it doesn't require a chuck or spindle. Moreover, it delivers precise results, requires minimal operator intervention, and facilitates high-volume production. In contrast, lathe machining may involve additional setups and tool changes, making it less efficient for certain applications.


Principles of Centerless Grinding


Centerless grinding operates on eight fundamental principles:


1. Precision Complementing CNC Machining: Centerless grinding supplements metal CNC machining by addressing its limitations in dimensions, materials, and surface finishes, especially for parts that are irregularly shaped or difficult to mount.


2. Simplicity and Precision: With minimal moving parts, centerless grinding is straightforward, making it ideal for achieving tight tolerances on small cylindrical metal parts through high-speed, continuous operation.


3. Two Grinding Methods: Through-feed grinding is suitable for parts with consistent roundness, while in-feed grinding is adept at handling complex shapes and notched parts like gear shafts.


4. Critical Wheel Selection: Choosing the right grinding wheel is crucial, depending on the workpiece material and desired surface finish. Super-abrasive wheels are particularly effective for grinding hard metals.


5. Proper Angles: Precise adjustment of angles between the regulating and grinding wheels, as well as the workpiece rest blade, ensures accurate roundness without issues like chatter or collisions.


6. Coolant Application: Coolant is necessary to prevent heat buildup during grinding, maintain part tolerances, and safeguard wheel integrity.


7. Incorporation of Newer Technology: Modern centerless grinding machines feature CNC controls, advanced software, and robotic loading/unloading capabilities, facilitating complex part production and efficiency enhancements.


8. Skill Development: Expertise in centerless grinding is typically cultivated through years of industry experience. Collaboration with skilled practitioners is essential for achieving optimal results.


What Factors Affect the Precision and Quality of Centerless Grinding?


Centerless grinding precision and quality are influenced by various factors:


Workpiece Material: The type and hardness of the material impact the grinding process.

Regulating Wheel: Its material quality, condition, and smoothness affect results.

Wheel Alignment: Proper alignment ensures precise grinding.

Grinding Speed: Controlled speed prevents overheating and maintains quality.

Machine Condition: Well-maintained equipment is crucial.

Operator Skill: Skilled operators ensure consistent results.




In conclusion, the benefits of centerless grinding machines are undeniable. From enhanced precision and increased efficiency to versatility and improved surface finish, these machines have revolutionized the way cylindrical components are manufactured. As industries continue to demand higher levels of quality and productivity, centerless grinding machines remain indispensable tools in the manufacturing arsenal.
