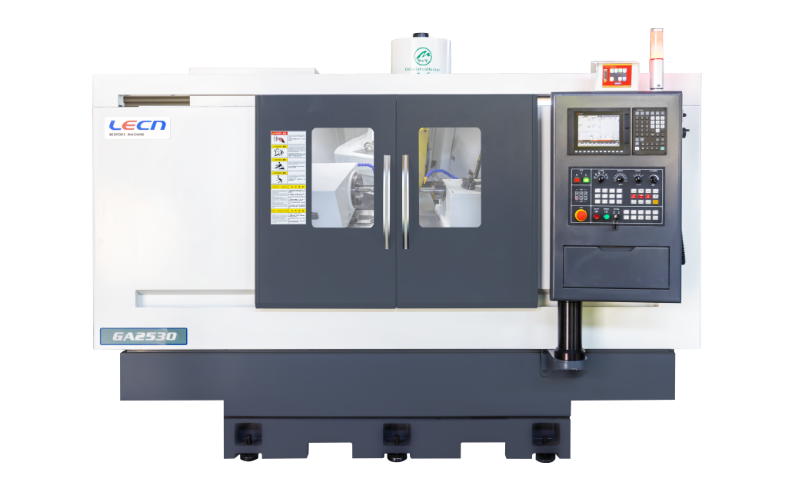

CNC Grinding Machine Buyers Guide: What They Are & How They Work

CNC grinders pair high-speed abrasive cutting with precision control to deliver exceptional surface finishes. Unlike many other CNC machine tool operations, the primary aim is not bulk material removal but achieving tight dimensional tolerances using automated CNC control.

What is a CNC Grinder?

A CNC grinding machine employs a rotating abrasive wheel to shave away microscopic amounts of material from a workpiece. These machines function mainly as finishing devices. For round parts, significant metal removal is often done on a lathe first, with the part later transferred to a cylindrical grinder to perform the fine finishing cuts.

CNC grinding focuses on removing small quantities of metal using a high-speed abrasive wheel as the cutting element. The wheel spins while the part is secured and moved along the X, Y, or Z axes as required by the part’s geometry. Depending on the size and shape of the component, multiple passes with the wheel are typically necessary to reach the final dimension.

A CNC grinding machine runs automatically with minimal operator input, following programmed instructions to produce fine surface finishes while minimizing distortion and improving grinding efficiency. Flood coolant is commonly used to preserve dimensional accuracy and surface quality during machining, and robust CNC controls manage motion and process parameters.

Although “CNC grinder” denotes a machine that removes material with a grinding wheel, there are several methods to accomplish that objective and multiple machine types designed for different jobs. The four most common categories are described below.

What are the Common Types of Grinders?

The primary types of CNC grinders include surface grinders, cylindrical grinders, precision internal/external (ID & OD) grinders, and centerless grinders.

1. Surface Grinders

Surface grinding is the most widely used grinding operation and is a finishing method for producing flat surfaces with a polished appearance or for meeting critical flatness tolerances. A surface grinder consists of an abrasive wheel, a work-holding device, and a table that either reciprocates or rotates.

The part is secured to the table in one of two common ways. For ferromagnetic components a magnetic chuck holds the work. For non-ferrous or nonmetallic pieces, vacuum fixtures or mechanical vises placed on the table are used.

The combination of wheel composition and workpiece material determines how a surface grinding operation proceeds. Cast iron and steel are common and generally do not clog standard grinding wheels. Materials such as aluminum, stainless steel, and brass often require more frequent dressing of the wheel. Excessive heat during grinding can degrade the workpiece or even demagnetize ferrous parts.

CNC surface grinding is efficient for producing flat, contoured, or irregular surfaces and remains a popular automated finishing process.

2. Cylindrical Grinders

Where surface grinding handles flat parts, cylindrical grinders are used for round work. Rods, shafts, and cylindrical components are typical candidates, and any part with a central axis—such as cams and crankshafts—can be processed.

During cylindrical grinding the workpiece rotates between centers while the grinding wheel turns in the opposite direction and reduces the part’s diameter with precision. The wheel may be aligned parallel or at an angle to the workpiece axis.

Workholding options include 3-jaw or 4-jaw chucks, collets, or magnetic chucks. In many setups the part only rotates while the wheel traverses along a fixed bed. The wheel’s abrasive must be harder than the work material; common wheel compositions include synthetic abrasives such as aluminum oxide.

3. Precision ID & OD Grinders

Historically, separate machines handled external diameters (OD) and internal bores (ID). In both cases, the wheel and part rotated in opposite directions while the tool moved toward or away from the work.

Although single-purpose ID or OD grinders still operate in many shops, combined ID/OD machines are becoming more common because they increase flexibility, productivity, and efficiency. These integrated machines achieve excellent surface finishes, tight dimensional accuracy, and concentricity.

ID/OD grinders enable precise finishing of the internal and external surfaces of hollow cylindrical parts without repositioning the work. By changing tooling, operators can grind tapers, steps, contours, and grooves on both inside and outside diameters.

4. Centerless Grinders

Centerless grinding differs because it does not use centers or conventional work-holding to grip cylindrical parts. Instead, the workpiece is supported between a primary grinding wheel and a smaller regulating wheel while resting on an angled support blade.

During grinding, the grinding wheel presses the part against the regulating wheel and support blade, preventing it from being thrown out of the machine. The regulating wheel controls the rotational speed. By tilting the regulating wheel slightly, the part will pass through the wheels and exit the machine in a process called through-feed grinding.

Infeed grinding is another centerless technique where the regulating wheel holds the part against a fixed stop and the grinding wheel is fed into the work until the target dimension is reached. Centerless grinding is well suited to high-volume production where roundness and dimensional accuracy of cylindrical surfaces are essential.

What are the Primary Grinding Applications of a CNC Grinder?

Automotive

Grinding machines are widely used in the automotive sector for parts such as brake cylinders, pistons for brake and steering systems, spline and gear shafts, connecting rods, camshafts, and crankshafts. While cylinder heads are often milled, surface grinders are commonly used to finish the mating face of a head.

Precision grinding of shaft outside diameters ensures proper fits between gears, bearings, and mating components. OD grinding maintains concentricity relative to the shaft centerline and ensures multiple diameters on a shaft are concentric.

Specialized grinders handle offset ODs for components with non-concentric diameters—examples include crank pin journals and cam lobes—by programming grinding cycles for both on-center and offset diameters. ID grinders similarly achieve precise fits for brake cylinders and connecting rods.

Aerospace

Aerospace components often require materials and geometries that endure extreme operating conditions, making them difficult to machine with conventional cutting tools. Those same properties frequently make them well suited to precision grinding. Typical aerospace items processed by grinders include turbine rings and turbine shafts.

Medical

Medical parts present demanding grinding challenges because they must resist corrosion and wear and stand up to frequent cleaning and sterilization. These requirements often lead to the use of stainless steels and titanium, which are harder to machine by standard milling or turning. Surface, cylindrical, and centerless grinders are widely used to meet the demanding tolerances medical components require.

Machine Tool Manufacturers

Grinding is the most accurate machining process, so manufacturers of machine tools rely heavily on CNC grinding to produce parts that require extreme precision. Surface grinders, ID/OD cylindrical grinders, and centerless grinders are commonly used to make spindles, ball screws, linear guideways, couplings, cams, racks, pistons, and valve spools.

Tooling Industry

The tooling sector supports machine tool production by making precision chucks, drills, reamers, carbide inserts, gauges, collets, and tool holder shanks. While tooling used on mills and lathes experiences wear and must be replaced, grinding wheels can be dressed repeatedly to restore their form and cutting edge, maintaining accuracy and finish.

What are the Main Features of a CNC Grinder?

A CNC grinding machine usually comprises a grinding spindle and wheelhead that remove material from a workpiece secured on the table. Surface grinders can produce various geometries such as flat faces, steps, grooves, and chamfers.

A cylindrical grinder typically includes four main elements: the headstock and tailstock, one or more grinding wheels, the wheel head, and the table. These machines can perform tapering, profiling, stepping, and straight diameter work on both internal and external surfaces. Workpieces may be held between centers, in a chuck, or in a collet depending on the operation.

How Much Does a CNC Grinder Cost?

Grinding equipment represents a significant investment. New, high-end cylindrical grinders from established manufacturers can range from several hundred thousand to over a million dollars. Even well-maintained older models of centerless grinders often command prices in the tens of thousands.
