Fundamental Principles of Cnc Lathe Processing Technology

Jul. 13, 2023

CNC (Computer Numerical Control) lathe processing technology is a widely used manufacturing technique that involves the use of computer-controlled machines to shape and form various components. The fundamental principles of CNC lathe processing technology are essential for understanding the capabilities and applications of this technology. In this response, I will explain the key principles in detail.


1. Computer-Aided Design (CAD):

CNC lathe processing starts with the creation of a digital model using CAD software. The CAD model defines the geometry, dimensions, and specifications of the component to be manufactured. It serves as the basis for the entire manufacturing process.


2. Computer-Aided Manufacturing (CAM):

Once the CAD model is created, CAM software is used to convert the digital model into a set of instructions that can be understood by the CNC lathe machine. The CAM software generates a toolpath that specifies the sequence of machining operations required to produce the component.


3. CNC Lathe Machine Setup:

The next step involves setting up the CNC lathe machine for the specific machining operation. This includes installing the required cutting tools, securing the workpiece in the machine, and configuring the machine parameters such as spindle speed, feed rate, and tool offsets.


4. Tool Selection:

The choice of cutting tools is crucial in CNC lathe processing. The selection depends on factors such as the material being machined, the desired surface finish, and the complexity of the component. Commonly used cutting tools in lathe operations include turning tools, boring tools, threading tools, and parting tools.


5. Workpiece Fixturing:

Proper fixturing is essential to securely hold the workpiece during the machining process. Fixtures are designed to provide stability, accuracy, and accessibility to the cutting tools. They ensure that the workpiece remains in the correct position and orientation throughout the machining operation.


Double Head CNC Lathe

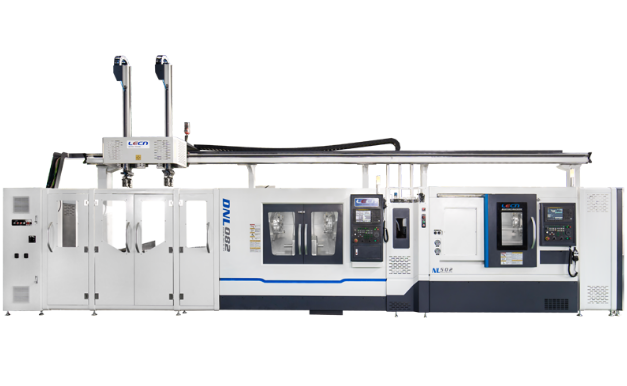

Double Head CNC Lathe+CNC Lathe+Truss Robot

6. G-Code Programming:

CNC lathe machines use G-code, a standardized programming language, to control the movement of the machine and the machining operations. G-code consists of a series of commands that specify tool movements, cutting parameters, and machine functions. The CAM software generates the G-code based on the toolpath generated earlier.


7. Machining Operations:

CNC lathe processing involves a range of machining operations to shape the workpiece. Some common operations include turning, facing, drilling, boring, threading, and grooving. Each operation is defined by specific G-code commands that control the movement of the machine and the cutting parameters.


8. Continuous Monitoring:

During the machining process, CNC lathe machines continuously monitor various parameters such as cutting forces, tool wear, and temperature. This monitoring allows for real-time adjustments to optimize the machining operation and ensure consistent quality.


9. Quality Control:

CNC lathe processing technology emphasizes quality control throughout the manufacturing process. The use of precision measurement instruments, such as calipers and micrometers, ensures that the machined components meet the required specifications. Additionally, automated inspection techniques, such as probing and vision systems, can be integrated into the CNC lathe machines for in-process and post-process quality checks.


10. Post-Processing:

Once the machining operation is complete, post-processing activities may be required, such as deburring, cleaning, and surface treatment. These steps ensure the final product meets the desired quality standards and surface finish requirements.


11. Optimization and Iteration:

CNC lathe processing technology allows for optimization and iteration of the machining process. By analyzing the data collected during machining, adjustments can be made to optimize cutting parameters, tool selection, and toolpath strategies. This iterative approach enhances efficiency, accuracy, and productivity.


In summary, CNC lathe processing technology involves the use of CAD/CAM software, precise tool selection, proper workpiece fixturing, G-code programming, and a range of machining operations to manufacture components with high precision and efficiency. Continuous monitoring, quality control, and post-processing activities contribute to achieving desired quality standards. The iterative nature of CNC lathe processing allows for ongoing optimization and improvement of the manufacturing process.

CNC lathe processing technology
