Dec. 08, 2025

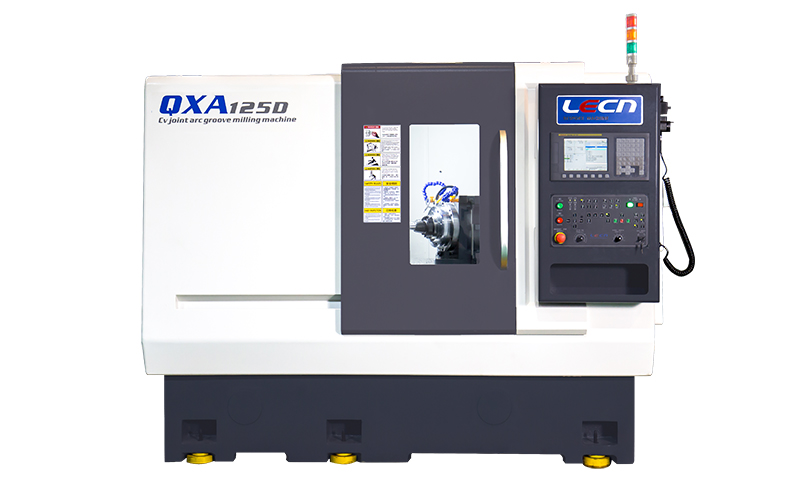

An outer race milling machine is a specialized piece of equipment designed for precision machining of bearing outer races and constant velocity joint (CV joint) outer housings. With the increasing demand for high-performance automotive components and industrial bearings, the need for highly accurate, efficient, and reliable milling solutions has continued to grow. For manufacturers aiming to enhance productivity and ensure consistent quality, outer race milling machines play an essential role in modern production lines.
An outer race milling machine is engineered specifically to shape and finish the grooves, tracks, and profiles on the outer race of bearings or CV joints. These races require extremely precise geometry to guarantee smooth rotation, low friction, and long service life. The machine integrates high-rigidity structures, advanced spindle technology, and CNC systems to achieve superior accuracy in each machining cycle.
Unlike general-purpose CNC milling machines, outer race milling machines are optimized with dedicated fixtures, multi-axis control, and custom cutting paths tailored to the unique profiles of bearing tracks and CV joint housings.
The outer race is a critical functional component in both bearings and constant velocity joints. Its dimensional accuracy directly influences:
Operational smoothness
Noise and vibration performance
Load-bearing capacity
Heat generation and wear rate
Overall lifespan of the bearing or CV joint
Manufacturers depend on precision machining to maintain consistent tolerances and ensure the final assembly meets international performance standards.
Key Features of an Outer Race Milling Machine
High-Precision Spindle System
The machine utilizes high-speed, stable spindles capable of maintaining tight tolerances over long production cycles. This ensures smooth track surfaces and uniform groove depth.
Multi-Axis CNC Control
Advanced control systems manage complex milling paths, groove profiles, and continuous contouring. Multi-axis capability allows simultaneous machining operations, greatly improving efficiency.
Dedicated Clamping and Fixturing
Custom fixtures securely hold outer races or CV joint housings in place, minimizing vibration and ensuring stable cutting performance even at high spindle speeds.
Heavy-Duty Machine Structure
Outer race milling requires high rigidity. The machine frame is built from reinforced castings that maintain structural stability, reduce thermal deformation, and support long-term accuracy.
Automated Tooling and Cooling
Integrated tool changers and high-pressure coolant systems optimize tool life, maintain temperature stability, and ensure excellent surface finish quality.
Intelligent Monitoring and Control
Advanced CNC software provides real-time monitoring of feed rates, cutting force, spindle load, and tool wear. Automatic compensation maintains consistent machining precision across long production runs.
Bearing Manufacturing
The machine is widely used to mill the:
Rolling raceways of deep groove ball bearings
Outer track profiles of tapered roller bearings
Guide tracks for needle roller bearings
Precision grooves for industrial specialty bearings
Automotive CV Joint Production
Constant velocity joints rely on precisely machined outer housings. These machines create the internal grooves that allow smooth torque transfer in front-wheel-drive and all-wheel-drive automotive systems.
Industrial Machinery Components
Outer race machining technology is used for precision sleeves, housings, and motion control components in heavy equipment, robotics, and automated systems.
Aerospace and High-Performance Mechanical Systems
High-load components in aerospace assemblies require extremely accurate raceways, which can be produced using specialized outer race milling equipment.
Superior Precision and Consistency
The entire machine structure and control system are designed for extremely tight tolerances. This consistency is essential for mass production in competitive markets.
Enhanced Production Efficiency
With multi-axis machining, fast tool changes, and automated workflows, production speed increases significantly while maintaining high-quality standards.
Lower Operating Costs Over Time
Reduced tool wear, better cooling, and lower rejection rates contribute to long-term cost savings for high-volume manufacturers.
High Flexibility and Customization
Users can adjust milling programs, select different cutting tools, and adapt fixtures to suit a wide range of bearing types and CV joint designs.
Long Service Life and Reliable Operation
Heavy-duty components and high-rigidity frames enable stable, high-precision machining even under continuous industrial use.
The demand for outer race milling machines continues to rise due to growth in the automotive sector, particularly the expansion of CV axle production in emerging markets. The global bearing industry is also experiencing strong growth driven by automation, renewable energy, industrial equipment upgrades, and robotics.
Manufacturers are increasingly adopting intelligent CNC technology, remote monitoring, and predictive maintenance to support Industry 4.0 transformation. This shift drives demand for advanced outer race milling machines equipped with digital diagnostics, energy-efficient systems, and automation capability.
Outer race milling machines are essential for modern bearing and CV joint manufacturing. With their high accuracy, strong durability, and advanced automation, they deliver the precision required for industries where performance and reliability are critical. For companies aiming to improve machining quality and productivity, investing in a well-designed outer race milling machine ensures superior product consistency and long-term efficiency.
