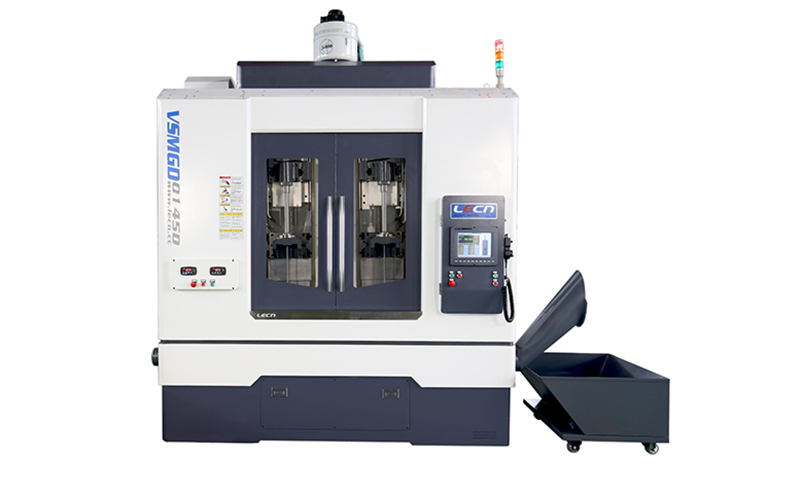

A deep hole drilling machine is a dedicated metal-cutting device engineered to produce exceptionally deep, accurately positioned holes in a variety of materials, most commonly metals. These machines are essential where high depth-to-diameter ratios are required, serving sectors such as aerospace, oil and gas, medical device manufacturing, and automotive production.
Deep hole drilling refers to machining operations that create holes whose depth is large relative to their diameter. A hole is typically considered “deep” when its depth exceeds ten times its diameter. Achieving such depths demands purpose-built equipment and specialized techniques to preserve dimensional accuracy, productivity, and operator safety.
Deep hole drilling machines include several engineered systems to meet the unique challenges of drilling long, narrow holes:
High-pressure coolant systems: These circulate coolant at elevated pressures directly to the cutting zone. The coolant reduces cutting temperatures, provides lubrication, and flushes chips away from the cutting edge and out of the hole.
Precision tooling: Tools such as gun drills, BTA-style cutters, and ejector drills are designed to remain stable and accurate over extended lengths. Their geometries and materials are optimized to resist deflection and wear during deep penetrations.
Chip removal mechanisms: Reliable evacuation of chips is critical. Machines integrate mechanical or hydraulic methods to extract chips continuously, preventing tool damage and maintaining steady cutting conditions.
Advanced control systems: Many modern deep hole drilling machines use CNC (computer numerical control) for tight regulation of feed, speed, and position. CNC enables complex hole profiles and repeatable outcomes across production runs.
Industries that rely on deep hole drilling include:
Aerospace: Components such as structural elements, hydraulic parts, and weight-reduction features often require deep, precise holes to meet performance and safety requirements.
Oil and gas: Tools and production components used in exploration and extraction demand deep holes that withstand extreme pressures and harsh environments.
Medical devices: Instruments and implants frequently need accurately formed deep bores for functionality and biocompatibility.
Automotive: Parts like crankshafts, camshafts, and fuel injection components commonly use deep holes to achieve required performance, balance, and reliability.
Several techniques are applied depending on material, hole specification, and production needs:
BTA-style tooling: This method employs a single tubular tool that permits continuous coolant flow and chip evacuation through the same tube, making it effective for deep bores with efficient cooling and chip management.
Gun drilling: Using a long, slim drill, gun drilling produces deep, straight holes with high accuracy. It is often followed by reaming or other finishing steps to achieve tighter tolerances and improved surface finish.
Electrochemical machining (ECM): ECM removes metal via controlled electrical dissolution, enabling hole creation in very hard or difficult-to-machine materials with minimal mechanical stress and excellent surface quality.
CNC deep hole drilling machines: The integration of CNC control enhances automation, precision, and consistency, allowing programmed complex drilling patterns and reliable repeatability for high-volume production.
Choosing the appropriate deep hole drilling method depends on the workpiece material, target hole dimensions and tolerances, production volume, and selected tooling.
Employing deep hole drilling machines delivers multiple advantages:
Precision and accuracy: These machines are engineered to produce holes with tight dimensional control, essential for high-performance applications.
Efficiency: Advanced tooling combined with effective cooling and chip extraction shortens cycle times and improves throughput.
Versatility: They can machine a broad spectrum of materials, including tough alloys and hardened steels.
Cost-effectiveness: Although initial equipment costs can be high, reductions in secondary setups and fewer finishing operations lower total production costs over time.
Deep hole drilling machines play a vital role in contemporary manufacturing by enabling the production of deep, precise bores across numerous industries. Their specialized tooling, coolant and chip management systems, and advanced control capabilities deliver quality, speed, and versatility. As technology advances, these machines will continue to be integral in enabling complex part designs and efficient, high-quality production.
