Outer race | Full sequence processing
Outer race is the main component part of CV joint,which uses groove and other connecting parts to transmit power and Torque in the transmission device.

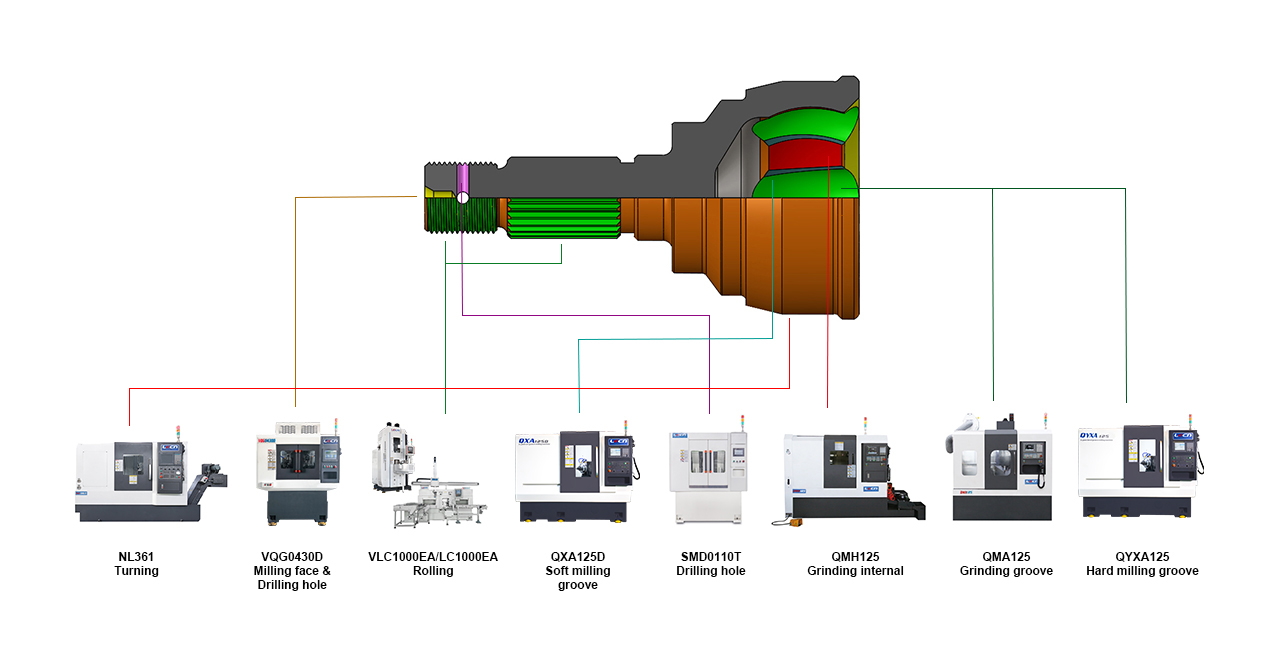

Crafting process
Workpiece case
| Workpiece name | Outer race | ||||||||
| Groove | BJ/UFJ/SX/DOJ | BJ | |||||||
| Machine type | NL361 | VQG0430D | VLC1000EA /LC1000EA | QXA125D | SMD0110T | QMH125 | QMA125 | QYXA125 | |
| Manufacturing procedure | Turning | Milling face & Drilling hole | Rolling | Soft milling groove | Drilling hole | Grinding internal | Grinding groove | Hard milling groove | |
