Valve camshaft | Full sequence processing

The engine valve camshaft is a part of the reciprocating engine that controls the opening and closing of the valve.

Custom text

The main body of the valve camshaft is a cylindrical rod of the same length as the cylinder block. It is sheathed with a number of cams, which are used to drive the valves. One end of the valve camshaft is the bearing support point and the other end is connected to the drive wheel.

Crafting process

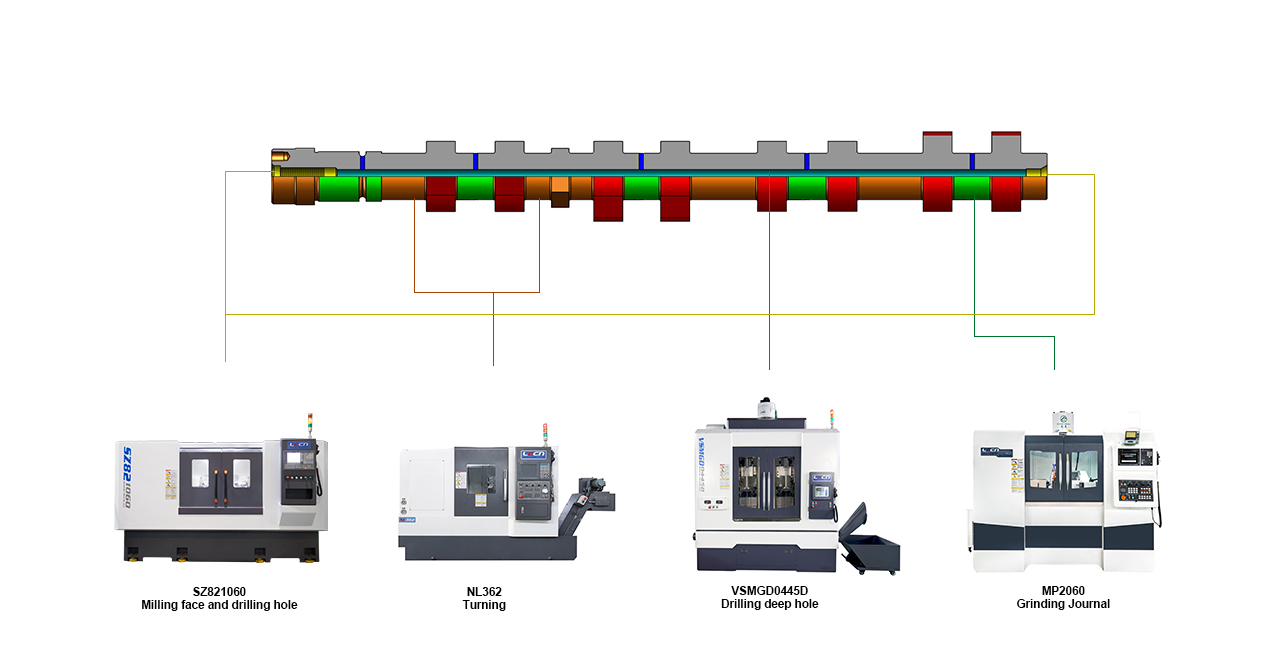

Workpiece case

Workpiece nameValve camshaft
Machine typeSZ821060NL362

VSMGD0445D

MP2060

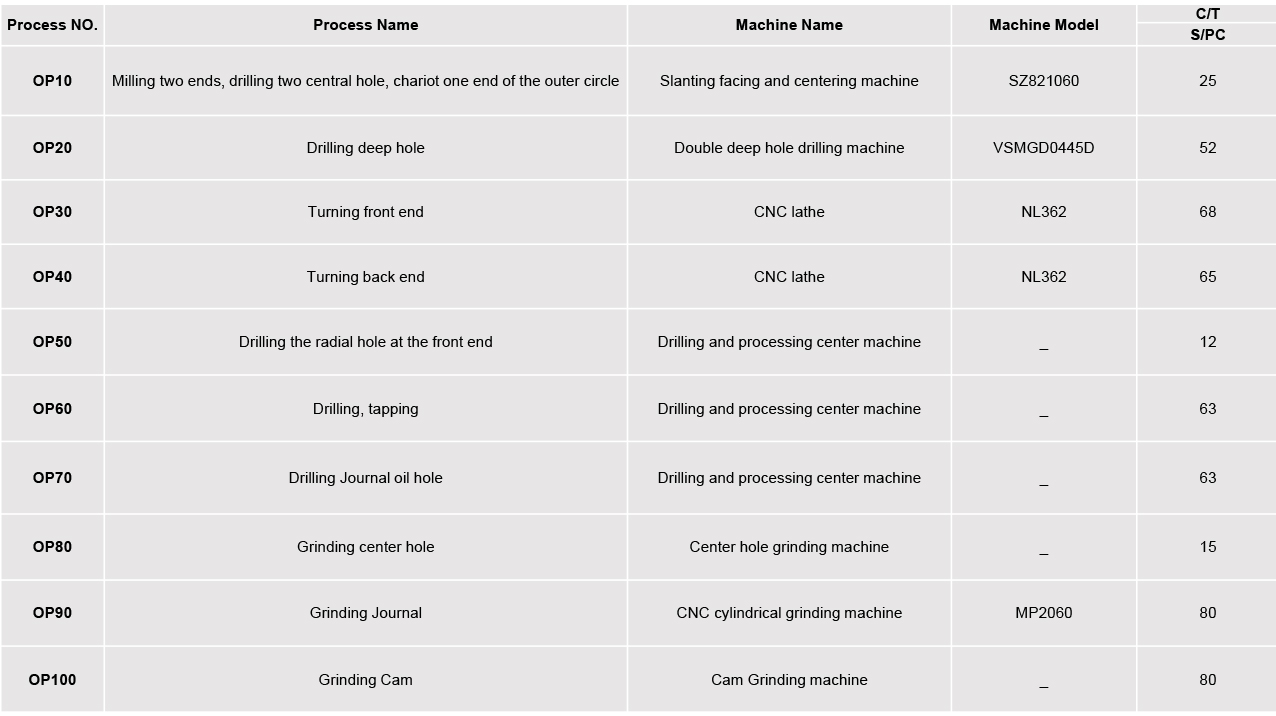

Manufacturing procedureMilling face and drilling hole

Turning

Drilling deep holeGrinding Journal
