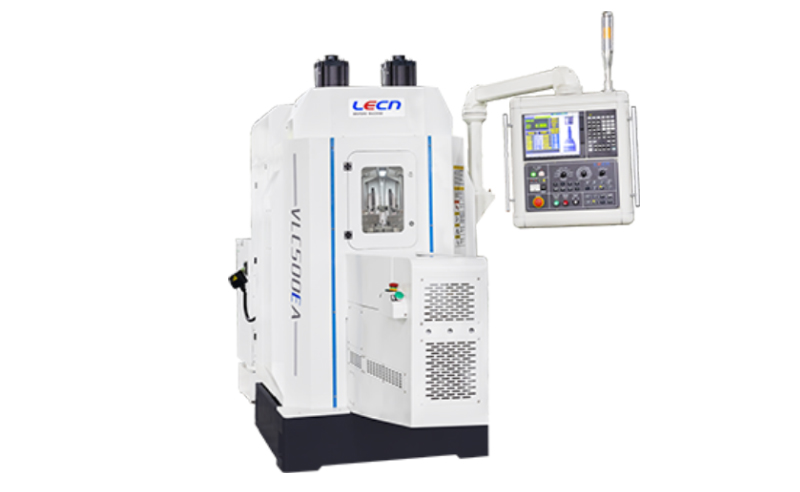

Vertical Rolling Machine VLC500EA

Single or multi section rolling,13 to 16 inch vertical mini reinforced CNC rolling machine,it is suitable for the cold rolling of involute(straight tooth,helical tooth,bevel tooth,missing tooth,merge tooth)spline,worm,thread,anilox roller,straight grain,oil groove and other precision non chip parts on the small modulus and digital shaft.Compact,precise,efficient and environmental friendly,it can carry with truss or joint robot and automatical line.

Advantage

  • Rich mold combination

    Rich mold combination

    Can save reverse roll forming mold.

  • Double servo motor full closed-loop drive

    Double servo motor full closed-loop drive

    Llow noise and precise forming process.

  • Intelligent all-around top servo technology

    Intelligent all-around top servo technology

    Effectively solve clamping secure identification.

  • Automation

    Automation

    Factory high stability automation.

Technical Parameters

ITEMVLC500EA
Max Module, mm1.0
Max Out Diameter, mmØ20
Max Tool Width, mm40
Max Workpiece Length, mm600
Max Installing Tool Width, mm300
The Open Part Size, mm139.7
Tool Size, inch13&16
Max Travel, mm500
Drive WayCNC
Special Specifications Can Be Customized

Application Artifact

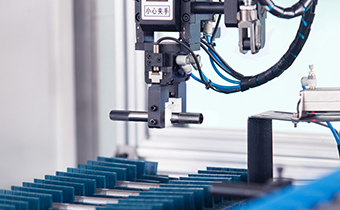

  • Vertical Rolling Machine VLC500EA

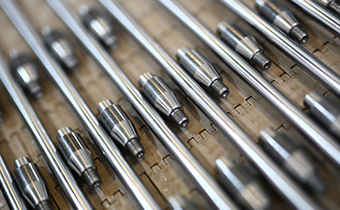

  • Vertical Rolling Machine VLC500EA

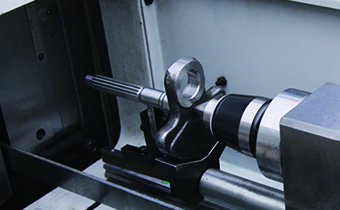

  • Vertical Rolling Machine VLC500EA

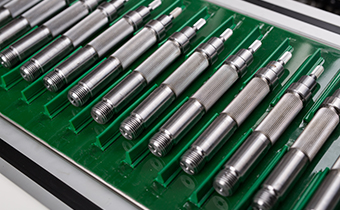

  • Vertical Rolling Machine VLC500EA
