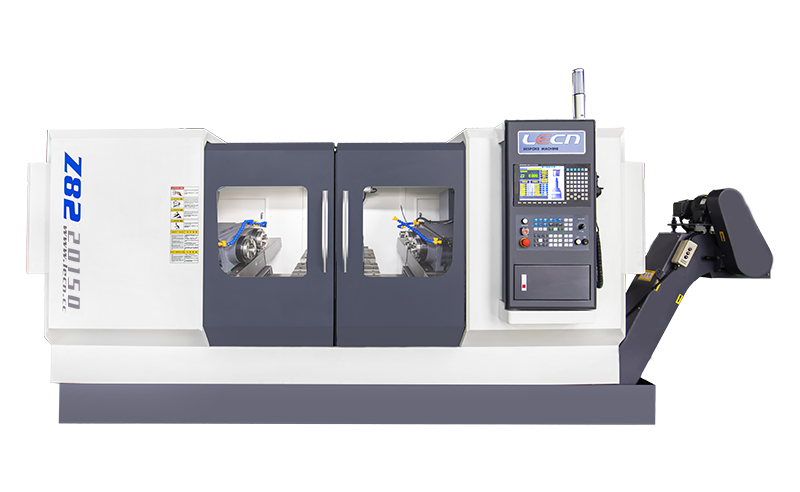

Both ends of the one clamping are processed at the same time, the horizontal facing and centering machine with 300-3000 mm workpiece length is suitable for milling, chariot, drilling center hole, drilling, tapping, boring, reaming, grooving package of all kinds of slender, irregular and stepped parts. High coaxiality, high efficiency, chip easily, it can carry with truss or joint robot and automatical line.
Advantage

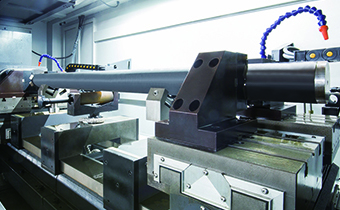

Hydraulic self-centering jig
Clamping reliable, accuracy stability.

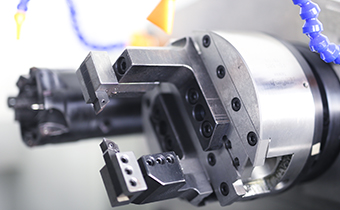

CNC spreading tool

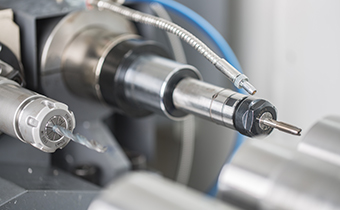

CNC tapping
Technical Parameters
| ITEM | Z8220150 | Z8220200 | Z822000 |
| Clamping Diameter Scope, mm | Ø100-Ø200 | Ø100-Ø200 | Ø100-Ø200 |
| Workpiece Length Scope, mm | 300-1500 | 600-2000 | 1500-3000 |
| Max Center Drilling Clamping Diameter, mm | Ø26 | Ø26 | Ø26 |
| Max Milling Amount(One Side), mm | 6 | 6 | 6 |

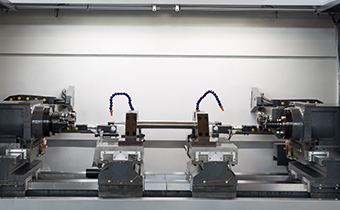

Simultaneous Machining of Both Ends
The machine processes both ends of the workpiece at the same time in one clamping cycle, greatly improving machining accuracy and shortening production time.
Wide Workpiece Processing Range
Designed for workpieces ranging from 300 mm to 3000 mm in length, it can accommodate various shaft sizes and customized production requirements.
High Coaxiality Accuracy
Single-clamping technology ensures excellent alignment between both ends, providing high concentricity for subsequent turning and precision machining operations.
Multi-Function Processing Capability
One machine can perform multiple operations, including:
End facing
Center hole drilling
Drilling
Tapping
Boring
Reaming
Grooving
This integrated processing capability reduces equipment investment and production complexity.
Efficient Chip Removal
The machine structure is optimized for smooth chip evacuation, preventing chip accumulation and improving operational stability.
Automation Ready
The system can be integrated with:
Truss robots
Articulated robots
Automatic loading systems
Flexible manufacturing cells
Fully automated production lines
This enables manufacturers to build intelligent and unmanned production systems.
Increase Production Efficiency
Processing both ends simultaneously reduces machining cycles and significantly boosts throughput.
Reduce Setup Errors
Single clamping minimizes positioning errors associated with multiple setups.
Improve Product Consistency
High repeatability ensures every workpiece meets strict dimensional requirements.
Lower Labor Costs
Automation compatibility reduces manual intervention and operator dependency.
Reduce Equipment Footprint
Combining multiple machining processes into one machine saves valuable factory space.
Support Smart Manufacturing
The machine can be seamlessly integrated into Industry 4.0 production environments.
Manufacturers face increasing pressure to improve productivity while maintaining precision. A Horizontal Facing and Centering Machine offers an ideal balance between speed, accuracy, and automation.
Key Benefits
Simultaneous machining of both ends
One-time clamping operation
Excellent coaxiality
High production efficiency
Reduced labor costs
Flexible processing capabilities
Easy chip removal
Automation integration support
Stable and reliable performance
Suitable for mass production
As manufacturing industries continue to pursue higher efficiency, precision, and automation, the Horizontal Facing and Centering Machine has become an essential production asset.
Its ability to complete multiple machining operations in a single setup while maintaining exceptional accuracy makes it a valuable investment for manufacturers seeking to optimize production processes, reduce costs, and improve product quality.
Whether for automotive, machinery, energy, or industrial equipment production, this machine delivers the performance, flexibility, and reliability required for modern manufacturing environments.
