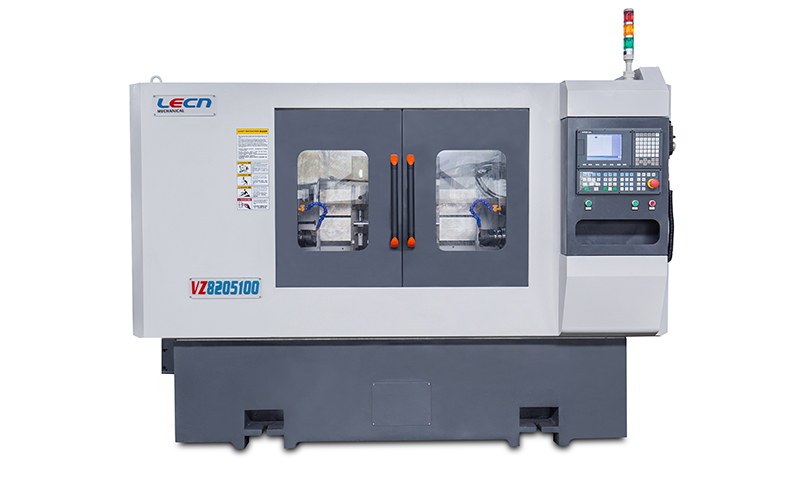

Vertical Facing and Centering Machine VZ8205100

Both ends of the one clamping are processed at the same time, the vertical facing and centering machine with 100-1000 mm workpiece length is suitable for milling, chariot, drilling center hole, drilling, tapping, boring, reaming, grooving package of all kinds of slender, irregular and stepped parts. High coaxiality, high efficiency, it can carry with truss or joint robot and automatical line.

Advantage

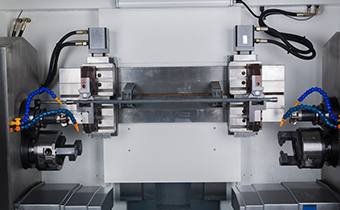

  • Hydraulic self-centering jig

    Hydraulic self-centering jig

    Clamping reliable, accuracy stability.

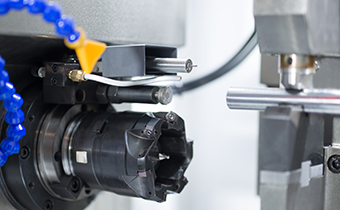

  • CNC spreading  tool

    CNC spreading tool

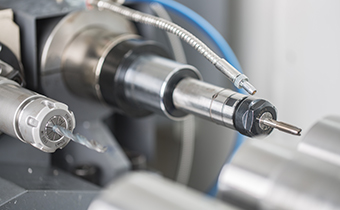

  • CNC tapping

    CNC tapping

  • Automation

    Automation

    Factory high stability automation.

Technical Parameters

ITEMVZ8205100
Clamping Diameter Scope, mmØ15-Ø50
Workpiece Length Scope, mm100-1000
Max Center Drilling Clamping Diameter, mmØ16
Max Milling Amount(One Side), mm4

Application Artifact
