The Difference Between Vertical and Horizontal Plate Rolling Machine

Mar. 07, 2023

Plate rolling machines are used in metalworking applications to bend metal plates into cylindrical, conical, or other curved shapes. There are two main types of plate rolling machines: vertical plate rolling machines and horizontal plate rolling machines. The main difference between these two types of machines is the orientation of the rolls. Vertical plate rolling machines have vertical rolls, while horizontal plate rolling machines have horizontal rolls. This simple difference in orientation affects the way the machines are used, their capabilities, and the types of projects they are best suited for.

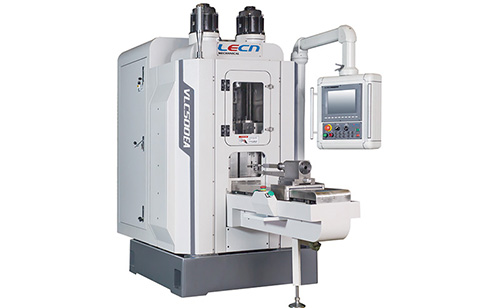

Vertical Rolling Machine VLC500EA  Horizontal Rolling Machine LC2000EA

Vertical Rolling Machine VLC500EA                                                      Horizontal Rolling Machine LC2000EA




Key Differences

Roll Orientation:

The most obvious difference between vertical and horizontal plate rolling machines is the orientation of the rolls. In vertical machines, the rolls are mounted vertically, one above the other. In horizontal machines, the rolls are mounted horizontally, side by side.


Plate Thickness:

Horizontal plate rolling machines are typically better suited for rolling thicker plates. This is because the weight of the plate is distributed more evenly across the rolls in a horizontal machine. In contrast, vertical machines tend to place more stress on the bottom roll, which can cause it to deform or break if it is supporting too much weight.


Plate Width:

Vertical plate rolling machines are better suited for rolling narrow plates, while horizontal machines are better for rolling wider plates. This is because vertical machines require a smaller distance between the rolls, while horizontal machines can accommodate wider plates due to the wider distance between the rolls.


Rolling Force:

Vertical plate rolling machines are typically better suited for projects that require higher rolling forces. This is because the weight of the plate is concentrated on the bottom roll, which allows for more force to be applied to the plate during the rolling process. In contrast, horizontal machines distribute the weight of the plate more evenly, which limits the amount of force that can be applied.


Machine Size:

Horizontal plate rolling machines are typically larger and heavier than vertical machines. This is because horizontal machines require more space to accommodate the wider rolls and larger plates they are designed to handle. Vertical machines, on the other hand, are more compact and can be used in smaller workspaces.


Versatility:

Vertical plate rolling machines are more versatile than horizontal machines, as they can be used to roll a wider range of shapes and sizes. Vertical machines can be used to roll cones, cylinders, and other curved shapes, while horizontal machines are best suited for rolling cylinders.


Overall, both vertical and horizontal plate rolling machines have their own advantages, and the choice between the two will depend on the specific needs of the project. For thicker plates, wider plates, or projects that require higher rolling forces, a horizontal machine may be the best choice. For narrower plates or projects that require a more versatile machine, a vertical machine may be the better option. Ultimately, the choice will depend on factors such as budget, available space, and the types of projects the machine will be used for.


If you want to know more information about vertical and horizontal plate rolling machine, please contact us. We will provide professional answers.
