Explore CNC Lathes

Nov. 08, 2021

Lathes have been around since the 19th century. Unlike their predecessors, today's CNC lathes are more sophisticated and automated.

Power factories around the world and are used for a wide range of applications.

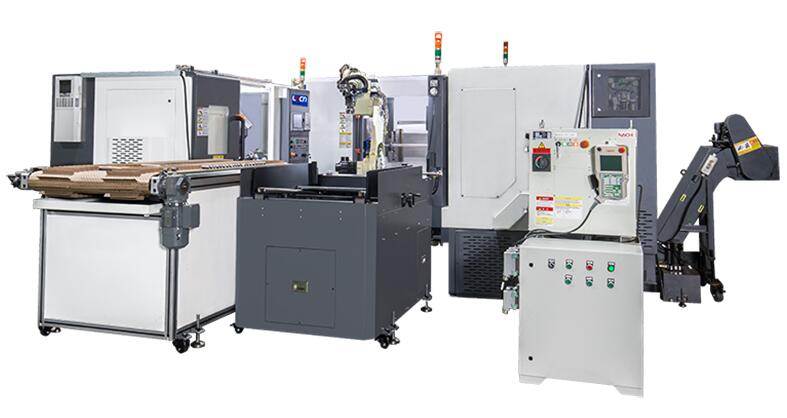

CNC Lathe+Facing And Centering Machine+Joint Robot



What is a CNC lathe?

CNC lathes, which are operated with computer numerical control (CNC) and provide precise design instructions, are machine tools where the material or part is clamped and rotated by a spindle, while the tool working on the material mounts and moves various axes.

CNC lathes are typically used for machine parts where the material/part is clamped and rotated while the cutting tool is fixedly mounted for OD (outside diameter) and ID (inside diameter) operations, such as shafts and pipes. They are very suitable for parts with the same symmetry around the axis, which can be clamped in the spindle (i.e. radial clamping).

A simple CNC lathe runs on 2 axes, with the tool in a fixed position on a turret of 8 to 24 stations. The rotating action of the part is called "turning", hence the name CNC lathe for some types of CNC lathes.

Milling (tools moving around a fixed workpiece), boring and tapping (tools cutting threads in a hole) tools are usually driven by a separate drive system within the turret. Depending on the application, the life tool (i.e. the active tool) is mounted in the axial or radial direction of operation. These can be found in 3-axis CNC lathes or CNC lathes.

Lathes with additional options (such as Y-axis, sub-spindle, or specific selected automation options) are often called turning centers. These sophisticated machines are capable of machining complex parts - these go beyond the standard external and internal turning operations and can combine milling, drilling, and tapping operations to complete the part in one setup. From raw material to finished product, this all-in-one machine dramatically increases productivity.



What can you do with a CNC lathe?

CNC lathes are typically used to machine/produce precise circles with an outside diameter (OD) and inside diameter (ID). Depending on the needs of different industries, almost any type of structure can be machined using this machine.

CNC lathes are commonly used in the oil and gas, automotive, aerospace, medical, electronics, mining, power plants, steel, and paper mills, and shipbuilding industries, to name just a few.

Modern CNC lathes are often equipped with life tools that can work on multiple axes. For example, they can contain both X and Y axes, contain a second turret with different tools, or contain a sub/second spindle. These features help to be more efficient and flexible in different milling, drilling, and tapping operations.

The result is a complete and even complex part manufacturing process without the need to transfer the part to another machine for a second operation, for example to a CNC milling machine or a CNC machining center.



If you need a CNC lathe, please feel free to contact us.
