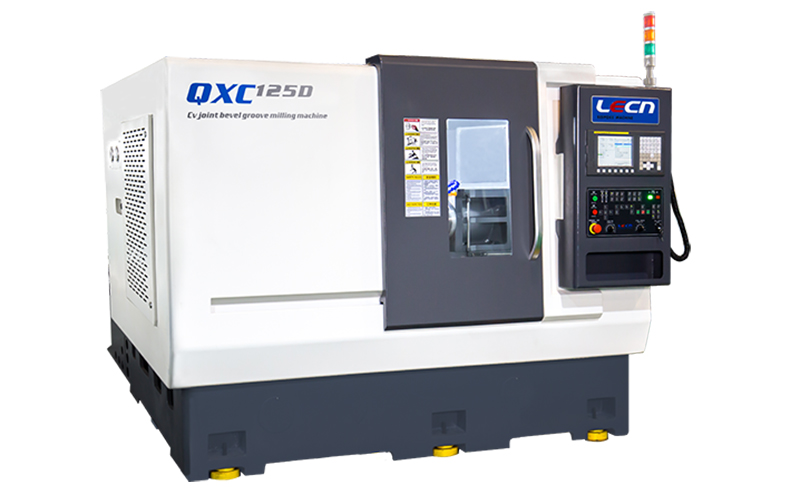

Outer Race Milling Machine QXC125D

Duplex outer race milling machine with one-time clamping and processing of multiple  VL/CG grooves, 45-100 mm processing of groove diameter, which is suitable for the rough and fine milling of outer race. High efficiency, it can carry with truss or joint robot and automatical line.

Advantage

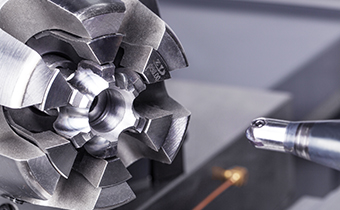

  • Hydraulic end tooth indexing

    Hydraulic end tooth indexing

    High precision.

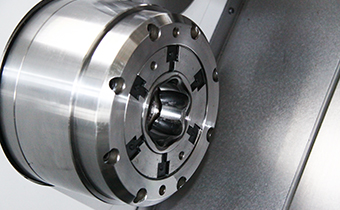

  • Special hydraulic elastic clamp

    Special hydraulic elastic clamp

    Clamping reliable, accuracy stability.

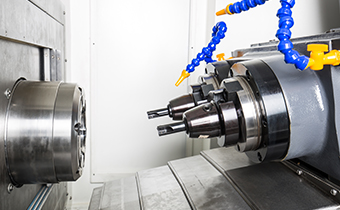

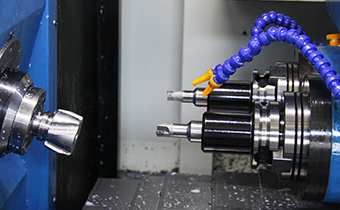

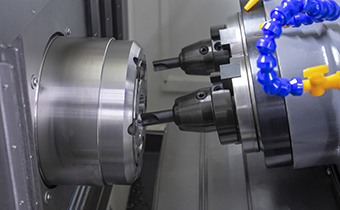

  • Double position rough milling

    Double position rough milling

    Finish milling ,produce once machining ,high precision.

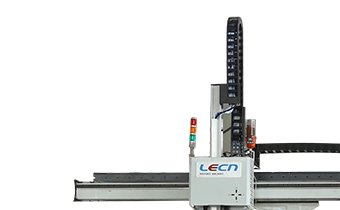

  • Automation

    Automation

    Factory high stability automation.

Technical Parameters

ITEMQXC125D
Max Clamping Diameter, mmØ110
Max Workpiece Length, mm260
Groove Diameter Scope, mmØ45-Ø100
DiameterOf Steel Ball Scope, mmØ12.7-Ø22
Max Workpiece Handle Diameter, mmØ40

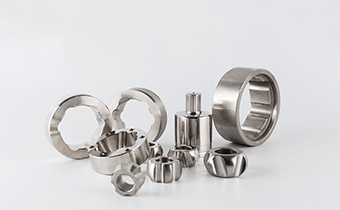

Application Artifact

  • Outer Race Milling Machine QXC125D

  • Outer Race Milling Machine QXC125D

  • Outer Race Milling Machine QXC125D

  • Outer Race Milling Machine QXC125D
