Vertical Facing And Centering Machine VZ820550

Both ends of the one clamping are processed at the same time, the vertical facing and centering machine with 100-500 mm workpiece length is suitable for milling, chariot, drilling center hole, drilling, tapping, boring, reaming, grooving package of all kinds of slender, irregular and stepped parts. High coaxiality, high efficiency, it can carry with truss or joint robot and automatical line.

Advantage

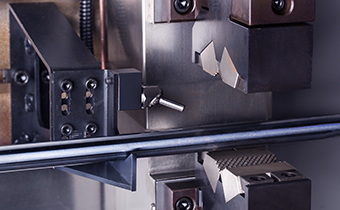

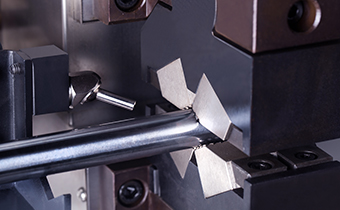

  • Hydraulic self-centering jig

    Hydraulic self-centering jig

    Clamping reliable, accuracy stability.

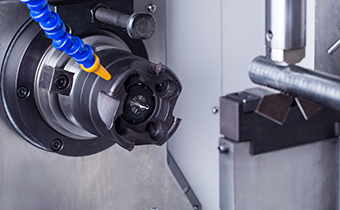

  • CNC spreading  tool

    CNC spreading tool

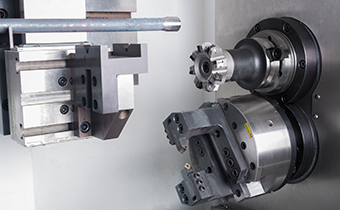

  • CNC tapping

    CNC tapping

  • Automation

    Automation

    Factory high stability automation.

Technical Parameters

ITEMVZ820550
Clamping Diameter Scope, mmØ15-Ø50
Workpiece Length Scope, mm100-500
Max Center Drilling Clamping Diameter, mmØ16
Max Milling Amount(One Side), mm4


The VZ820550 vertical facing and centering machine is designed for machining both ends of slender, irregular and stepped workpieces in a single clamping setup. With a workpiece length range of 100–500 mm and a clamping diameter of Ø15–Ø50 mm, it supports multiple operations, including end facing, center drilling, milling, drilling and tapping. Its hydraulic self-centering fixture ensures reliable clamping, while optional truss or articulated robot integration supports automated production.

 How Does the Vertical Facing and Centering Machine Work?


The VZ820550 completes machining of both workpiece ends in one clamping cycle:

  1. Workpiece Loading: Position the workpiece and secure it with the hydraulic self-centering fixture.

  2. End Facing: Machine both ends to achieve the required end-face dimensions.

  3. Center Drilling: Machine center holes to prepare the workpiece for subsequent turning or grinding.

  4. Additional Machining: Perform drilling, tapping, boring or reaming according to processing requirements.

  5. Unloading: Remove the finished workpiece manually or through an optional robotic handling system.

Applications of VZ820550 Vertical Facing and Centering Machine

The VZ820550 is suitable for machining shaft-type and other cylindrical components with a workpiece length of 100–500 mm.

Typical applications include:

  • Automotive Parts: Transmission shafts and automotive mechanical components.

  • Motor Industry: Motor shafts and cylindrical drive components.

  • Industrial Machinery: Stepped shafts, slender parts and precision mechanical components.

  • General Manufacturing: Irregular workpieces requiring double-end facing and center drilling.

The machining configuration can be customized according to workpiece drawings, dimensions and production requirements.
