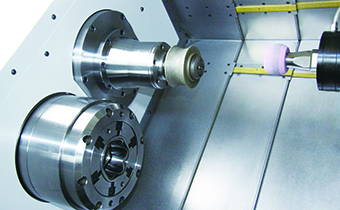

Outer Race Internal Grinding Machine QMH125

Outer race internal grinding machine with 45-100 mm processing of groove diameter, which is suitable for the precision grinding of outer race internal. High precision, high efficiency, it can carry with truss or joint robot and automatical line.

Technical Parameters

ITEMQMH125
Max Clamping Diameter, mmØ115
Max Workpiece Length, mm260
Groove Diameter Scope, mmØ45-Ø100
Ginding Wheel Diameter Scope, mmØ30-Ø50
Max Workpiece Handle Diameter, mmØ40

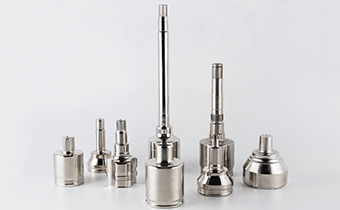

Application Artifact
